Photoelectric sensor Kampa G18-3A30NA NPN NO Diffuse

Product Categories

Yueqing Kampa Electric Co., Ltd.

Contact Now

Name: Photoelectric sensor Kampa G183A30NA NPN NO Diffuse
Brand: ELEXPERT/KAMPA
Price: 5.00 USD

Model Number : G18

Type : other

Place of Origin : Zhejiang, China

Brand Name : ELEXPERT/KAMPA

Usage : more, Consumption Sensor

Theory : other, Current Sensor

Certification : CE

Model : G18

Output state : NO,NC,NO+NC

Sample time : 5days-Photoelectric sensor

MOQ : 100pcs

Packing : 2pcs/Inner box

Color : Blue-Photoelectric sensor

OEM : YES

Packaging Details : G18-3A30NA NPN NO diffuse Photoelectric sensor
2pcs/inner box Standard Exported Carton

Port : NINGBO,SHENZHEN,SHANGHAI

Supply Ability : 10000 Piece/Pieces per Month Photoelectric sensor

MOQ : 100 Pieces

Price : $5.00 - $10.00/Pieces

Contact Now

Photoelectric sensor Kampa G18-3A30NA NPN NO Diffuse

Model:G18 series

Photoelectric sensor Kampa G18-3A30NA NPN NO Diffuse

PHOTOELECTRIC SENSOR
Model				G18
Outward appearance illustration
Overall dimension
Diffuse	Detection distance			10cm-30cm
	DC10-30V	NPN	NO	G18-3A10NA
			NC	G18-3A10NB
			NO+NC	G18-3A10NC
		PNP	NO	G18-3A10PA
			NC	G18-3A10PB
			NO+NC	G18-3A10PC
	AC90-250V	SCR Controllable silicon	NO
			NC
		Relay output
Retroreflictive	Detection distance			2m
	DC10-30V	NPN	NO	G18-3B2NA
			NC	G18-3B2NB
			NO+NC	G18-3B2NC
		PNP	NO	G18-3B2PA
			NC	G18-3B2PB
			NO+NC	G18-3B2PC
	AC90-250V	SCR Controllable silicon	NO
			NC
		Relay output
Trough beam	Detection distance			5m
	DC10-30V	NPN	NO	G18-3C5NA
			NC	G18-3C5NB
			NO+NC	G18-3C5NC
		PNP	NO	G18-3C5PA
			NC	G18-3C5PB
			NO+NC	G18-3C5PC
	AC90-250V	SCR Controllable silicon	NO
			NC
		Relay output
Control output				DC:200mA
Consumption current				DC<15mA
Response time				DC<2ms
Direction angle				3C to 10C
Detected object				Transparent of opaque body
Working environment temperature				below 25C to 55C
INtensity of illumination of working environment				Incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54

Photoelectric sensor Kampa G18-3A30NA NPN NO Diffuse

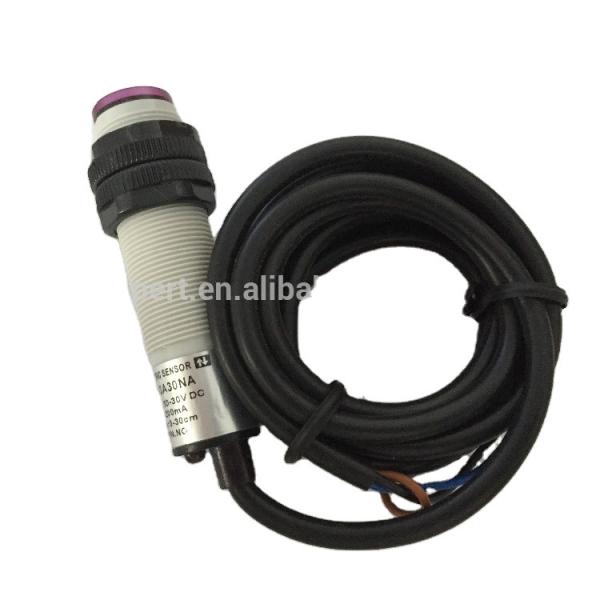

Photoelectric sensor Kampa G18-3A30NA NPN NO Diffuse Images
